Product Functions
Note
OBD2 Version: Compatible for: Cars in OBD2 system
When you're ready to place an order, but you don't know whether your car is compatible with the HUD, you can contact with us! We're glad to help you!
OBD2 Version
It works when the car is running, and turn off when the car's ignition is off.
OBD2 Display data: Speed, coolant temperature, voltage, mileage, clear faulty code.

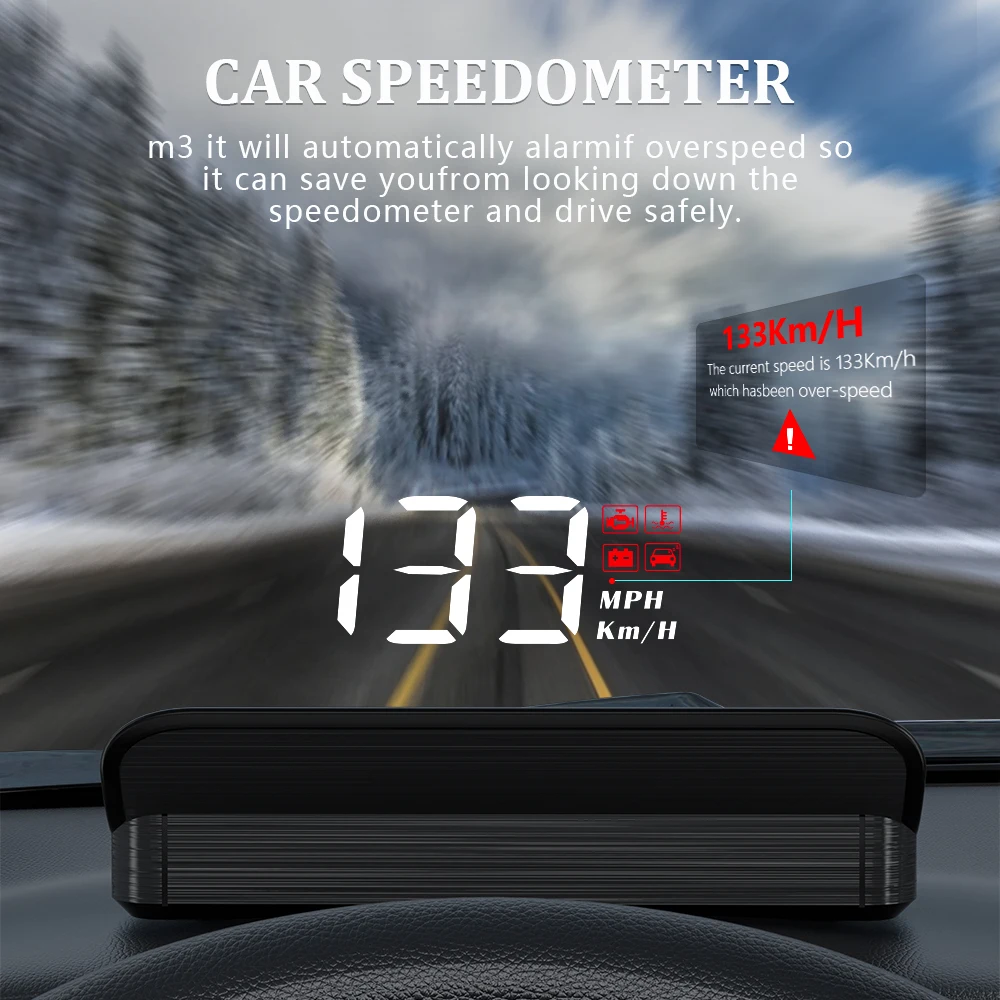

Alarms: over-speed alarm, high water temperature alarm, low voltage alarm, fault code alarm, fatigue driving alarm.
Automatically turn on or off: After the engine is turned off for 30 seconds, the HUD will automatically shut down; when the engine is started, it will automatically display after 5 seconds. Our HUD with a switch, which can be turned on and off manually. If you do not drive for a long time, it is recommended to manually turn off the HUD. The brightness can automatically adjust by environment
Multi-function switch and use the newest upgrade hardware
4 major functions can be switched

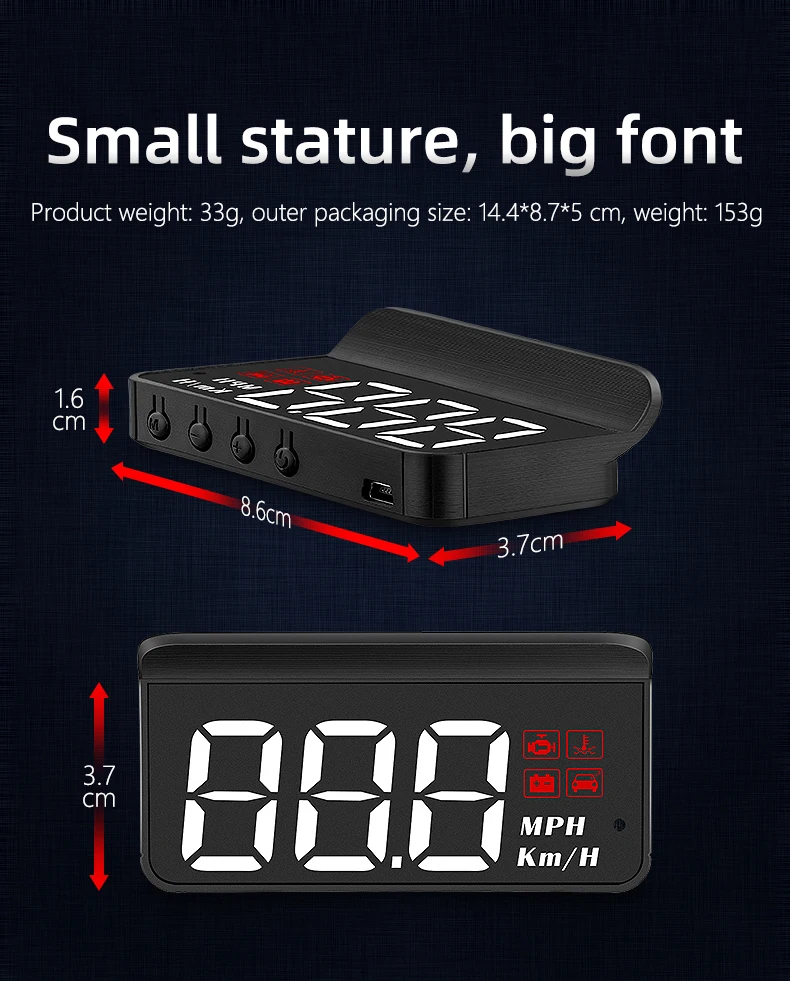

Product Size
Screen Size: 3.2 inches
Display Type: Windshield
Projector Dimension: 8.6x3.7x1.6cm
Integrated shading design
Covering the screen light, not buzzing at night driving

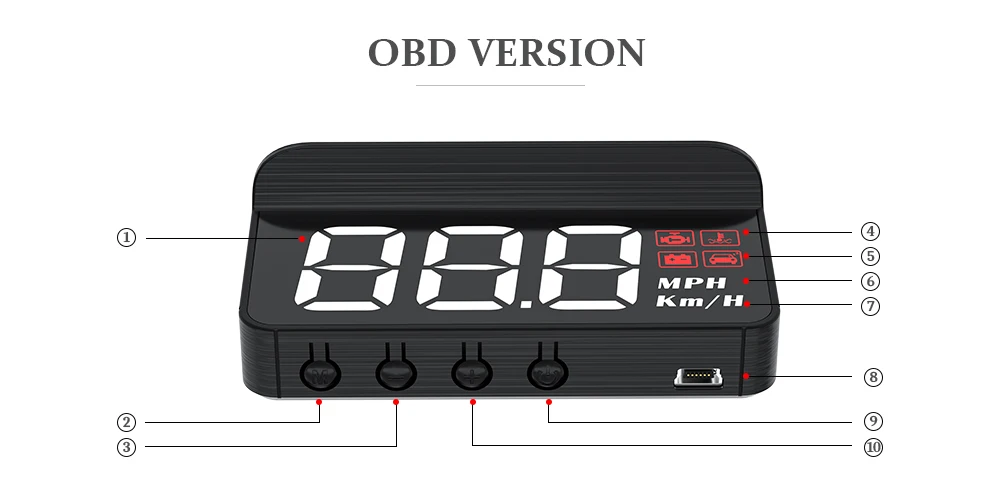

OBD2 Version
(It is compatible with OBD2 and EOBD system, it supports over-speed alarm.)
1.Multi function: Speed, Water temperature, Voltage
2.Short Press the button "M"
To switch voltage, water temperature, vehicle speed, enter into menu setting to switch menu options or parameter values
Long Press the button "M"
To enter into menu settings (see instructions for Menu 1-12) and press 5 seconds to save and exit
3.Short Press the button "-"
Menu - and parameter value -
Long Press the button "-"
To turn on and off the buzzer(default choice is buzzer on,you can freely choose to turn on or off)
4.Engine icon, Water temperature icon
5.Voltage icon, Fatigue driving icon

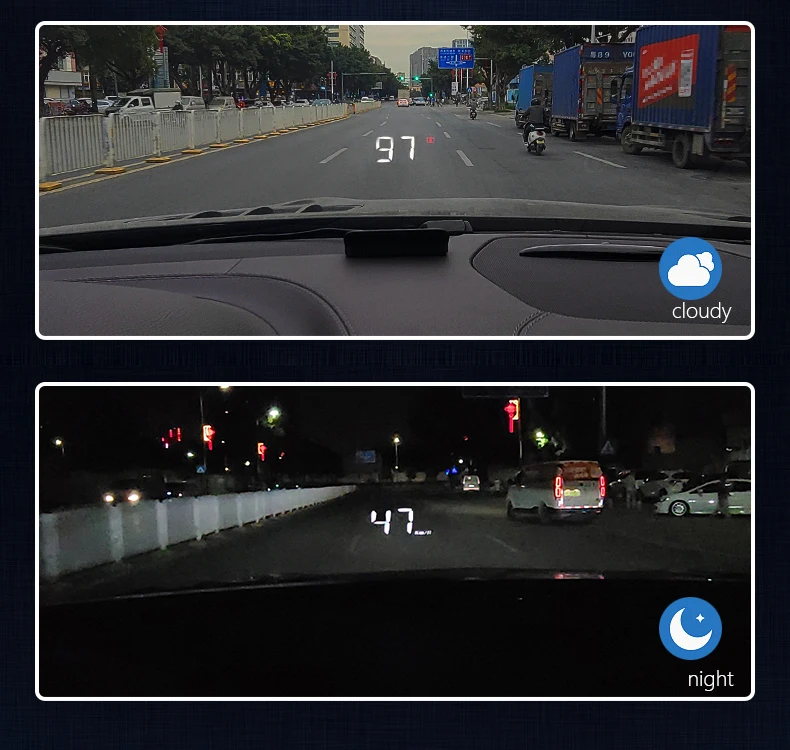

6.Light sensor:HUD can automatically adjust the brightness according to the environment
7.Speed unit: MPH- mile, KM/H- kilometer
8.OBD connection port
9.Power switch
Long press for 5s to turn off,again to turn on
10.Short Press the button "+"
Menu + and parameters value +
Long Press the button "+"
Long press till the screen is all on, and the fault code is eliminated, long press again to exit
Please Note:

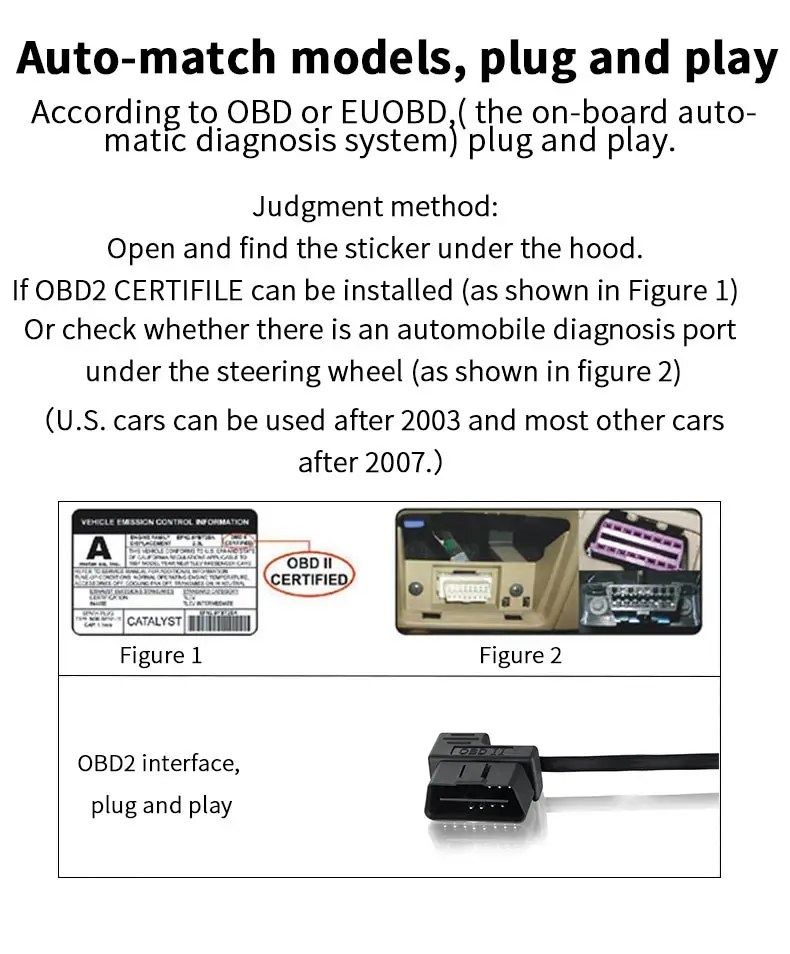

OBD2 model can work for OBD2 gasoline vehicles produced after 2004 in USA, and OBD2 gasoline vehicles produced after 2008 in other countries.
OBD2 model is not applicable for the following cars:
Package List:
1 x HUD
1 x Manual
1 x OBD Cable or GPS USB Cable
1 x Reflective film
1 x3M Sticker
Guarantee
Our products support 7-day free returns! So if there is any problem with the hud I received, don't worry about how to return it.
Shipping out package within 24 hours!
Ship From KR/RU/PL Local Warehouse/Chinese Warehouse

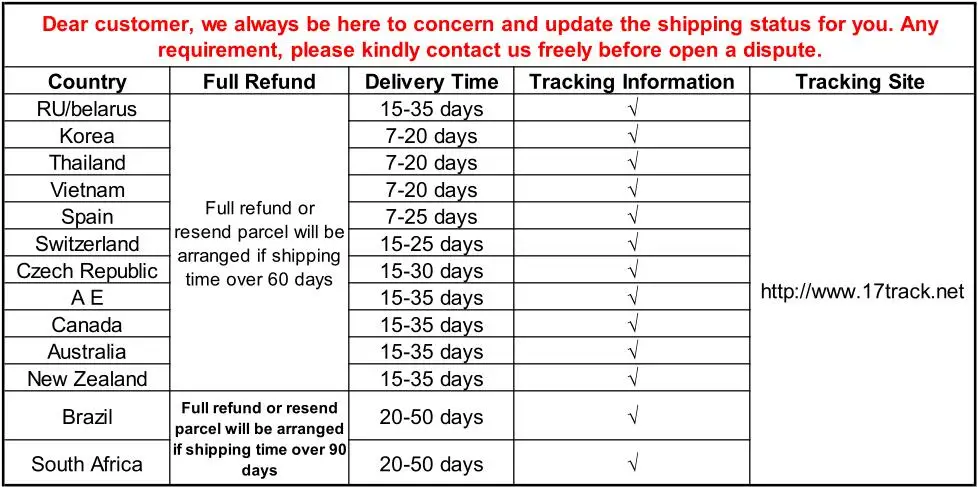

Fast delivery: Korean 3-5 day / Russian 5-10 day / Poland 5-10 day.
Please do not leave bad reviews in advance! Contact us and let us know if you have any questions! We are happy to help!
Thank you! my dear friend!
FAQ:
Speed error: A little speed error is mainly because the car factory has processed the actual speed of the car for the safety of the car owner, so the speed displayed on the normal instrument panel has an error with the speed displayed by the HUD, but this can be adjusted until the HUD and the instrument panel display speed are the same. Please contact with us! We will send you a digital user manual, which clearly describe how to adjust the speed error, you can use Google translation tool to translate the manual to your country language!
Please Note:
OBD2 model can work for OBD2 gasoline vehicles produced after 2004 in USA, and OBD2 gasoline vehicles produced after 2008 in other countries.
OBD2 model is not applicable for the following cars:
FQA:
How to Install the HUD:
1. Insert the product into the check port on the vehicle;
2. Insert the other end of the product into the data interface of the host;
3. After the product is inserted into the host and the car is started, wait for the communication linkage between A202 and the car;
4. After the linkage is successfully established, the host will send a "drop" sound, at the same the display screen displays vehicle protocols and then indicates that it is the first time the product is used to set up parameters. (International universal OBD plug protocol definitions stipulated by SAE).
Common problem:
Q1: Why does it automatically turn off after a period of time?
A1: Its default sleep time is 30s, So when your engine is turned off, it will automatically turn off after 30s .please choose "Sleep Time Set" to set the sleep time.
Q2: Why my car dashboard lights or fault alarm lights are caused to be lit up abnormally?
A2: When used in some cars, car dashboard lights or fault alarm lights are caused to be lit up abnormally, choose"Product inf" -"Matching inf" to see the solution, and use needle-nose pliers to twist off excess pins to eliminate such phenomena.
